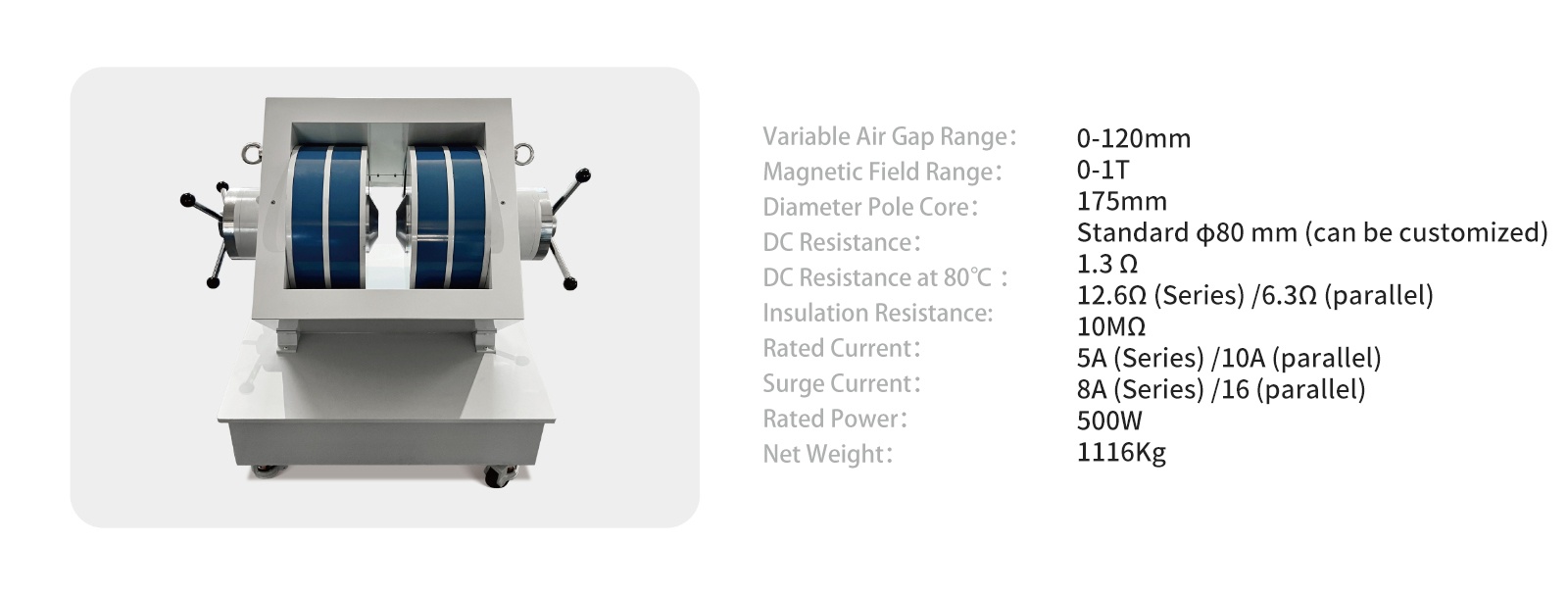

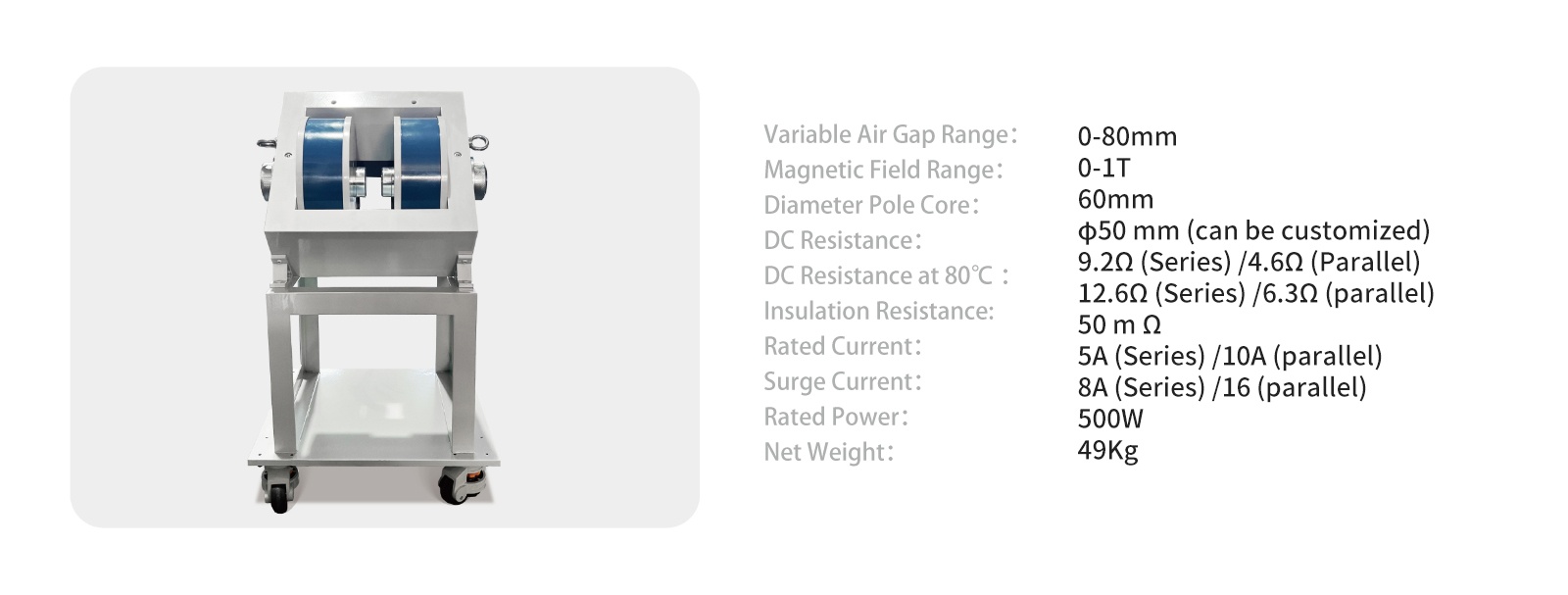

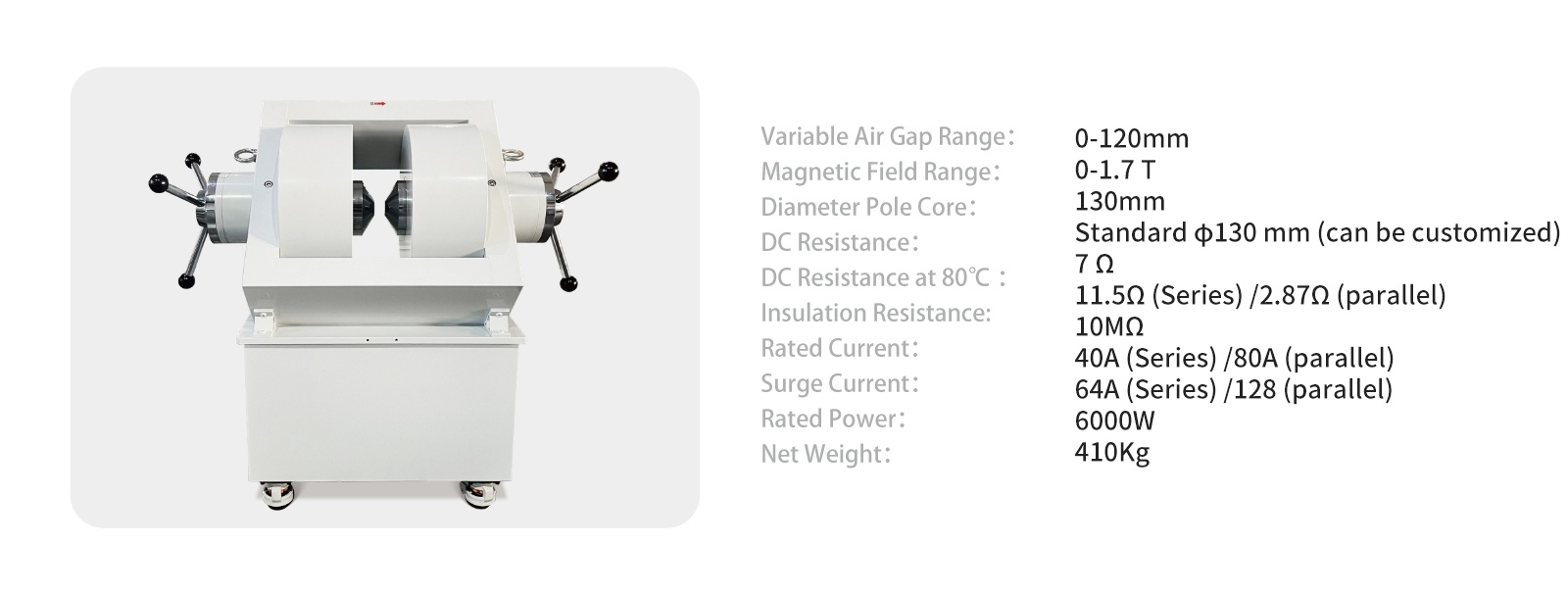

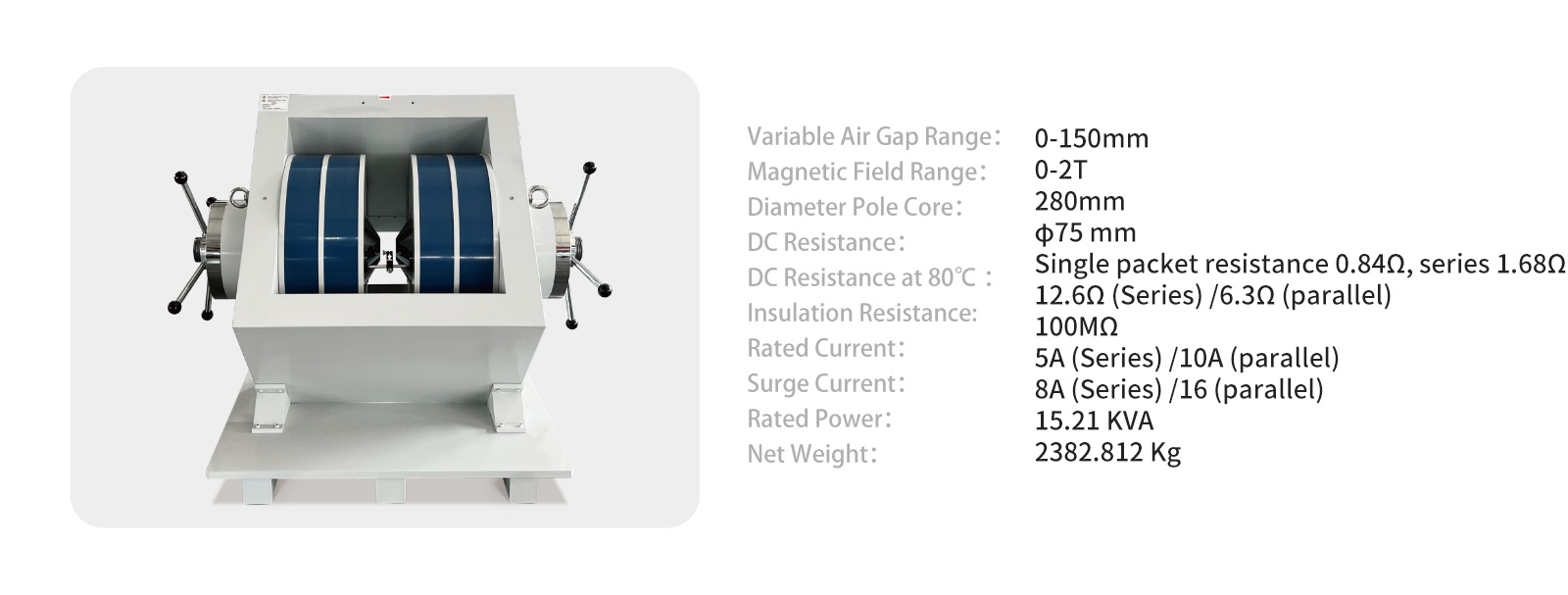

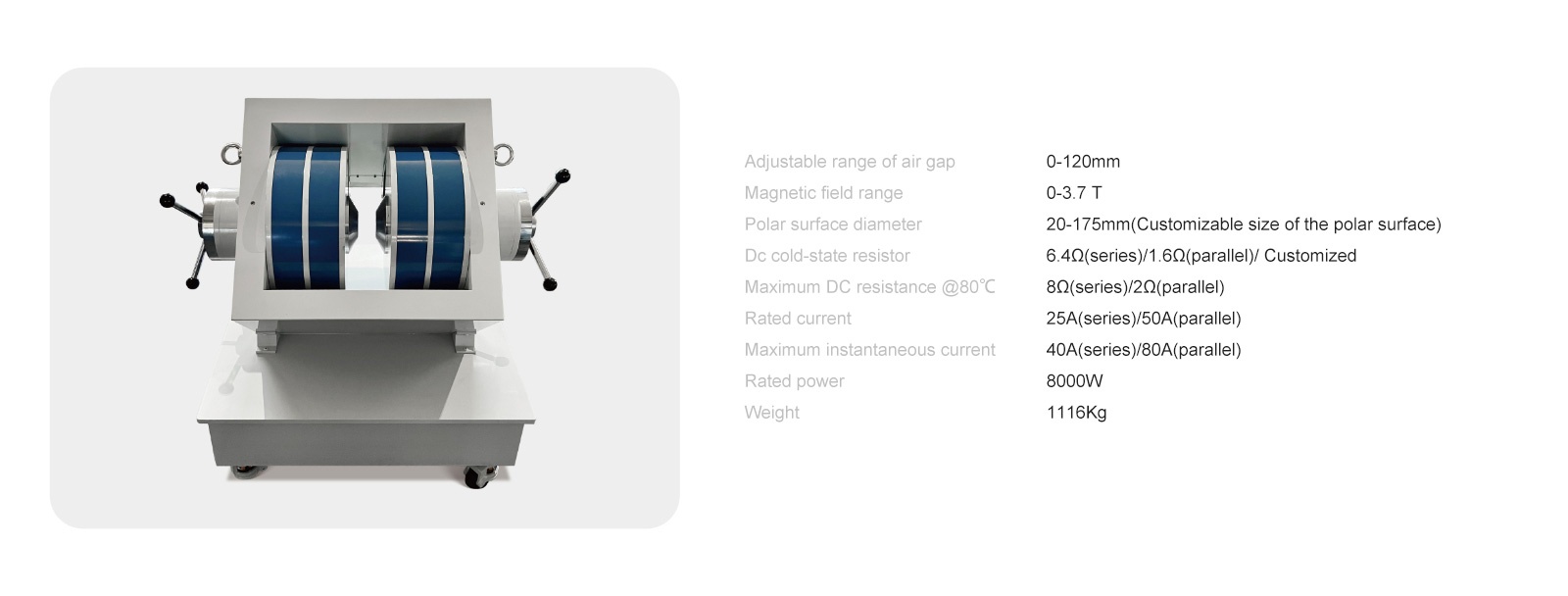

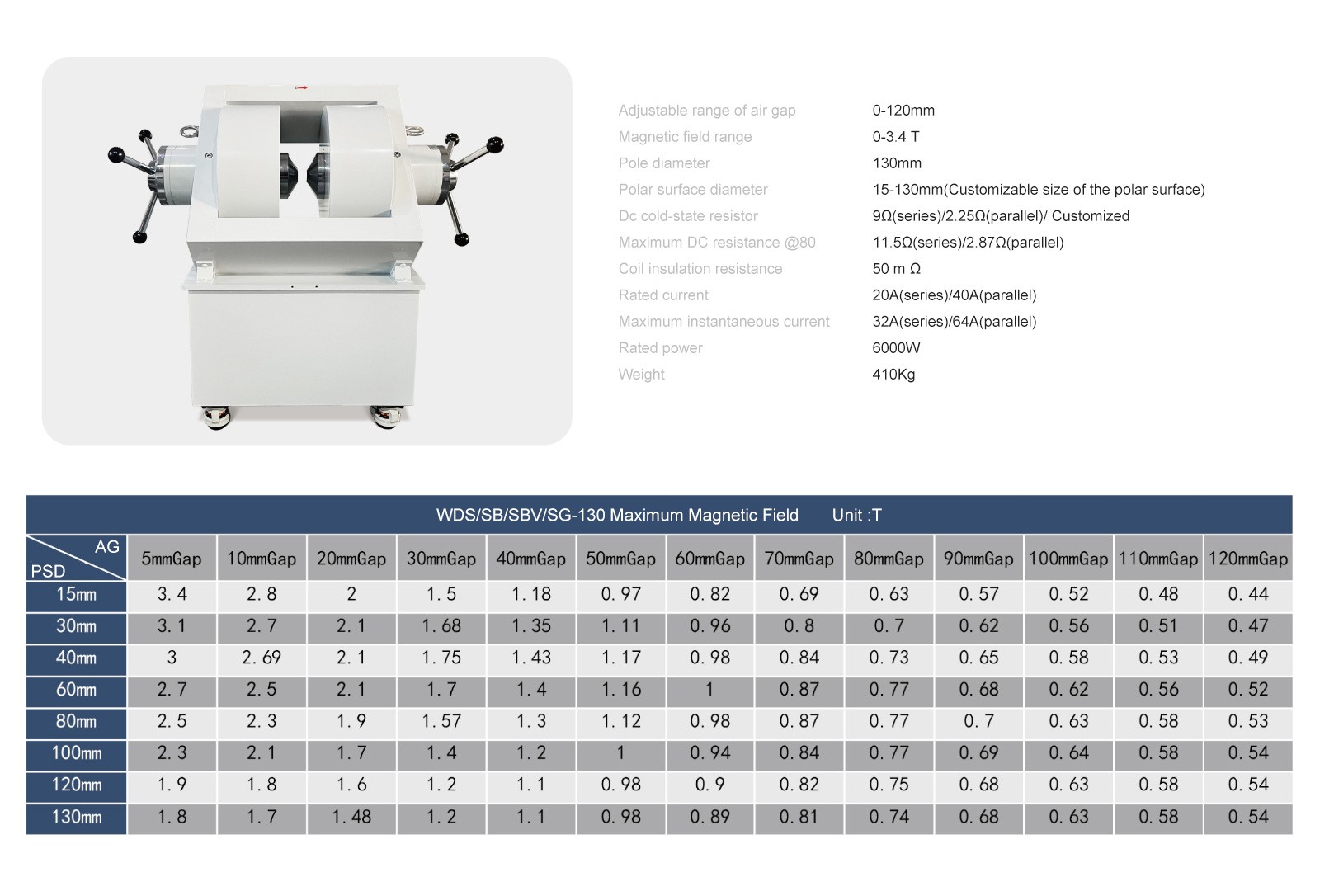

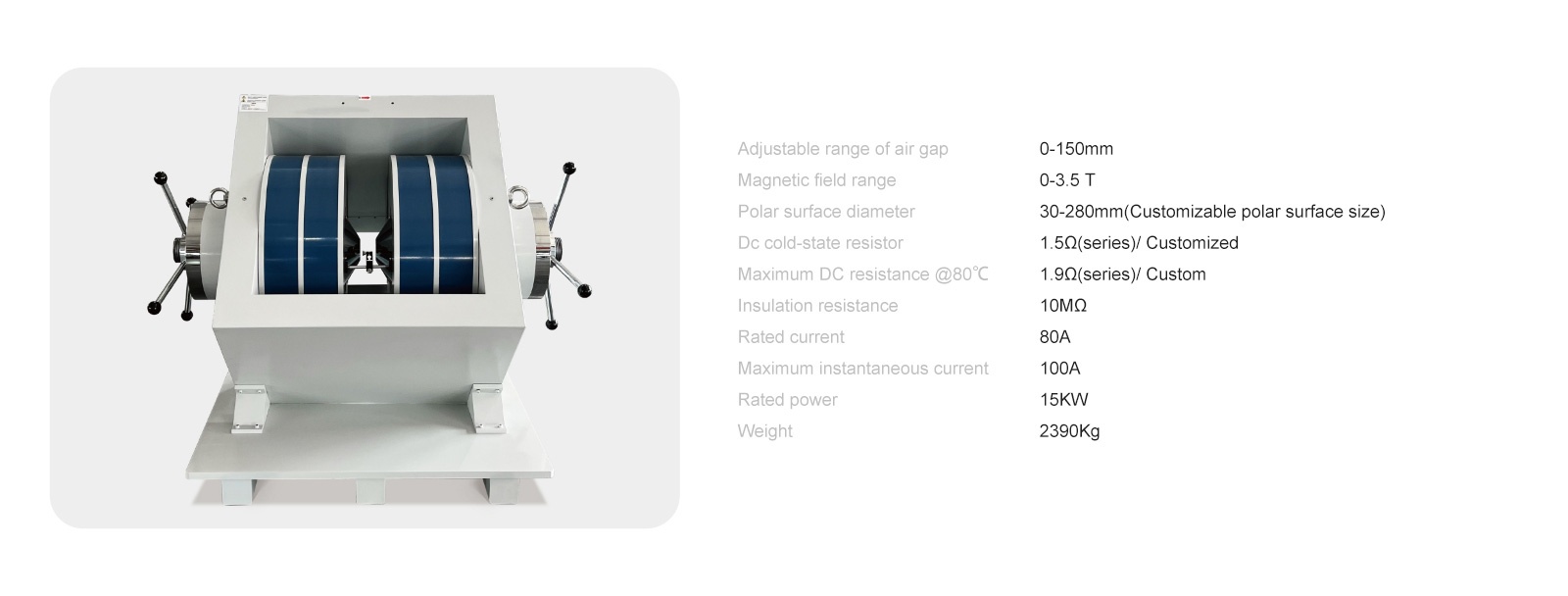

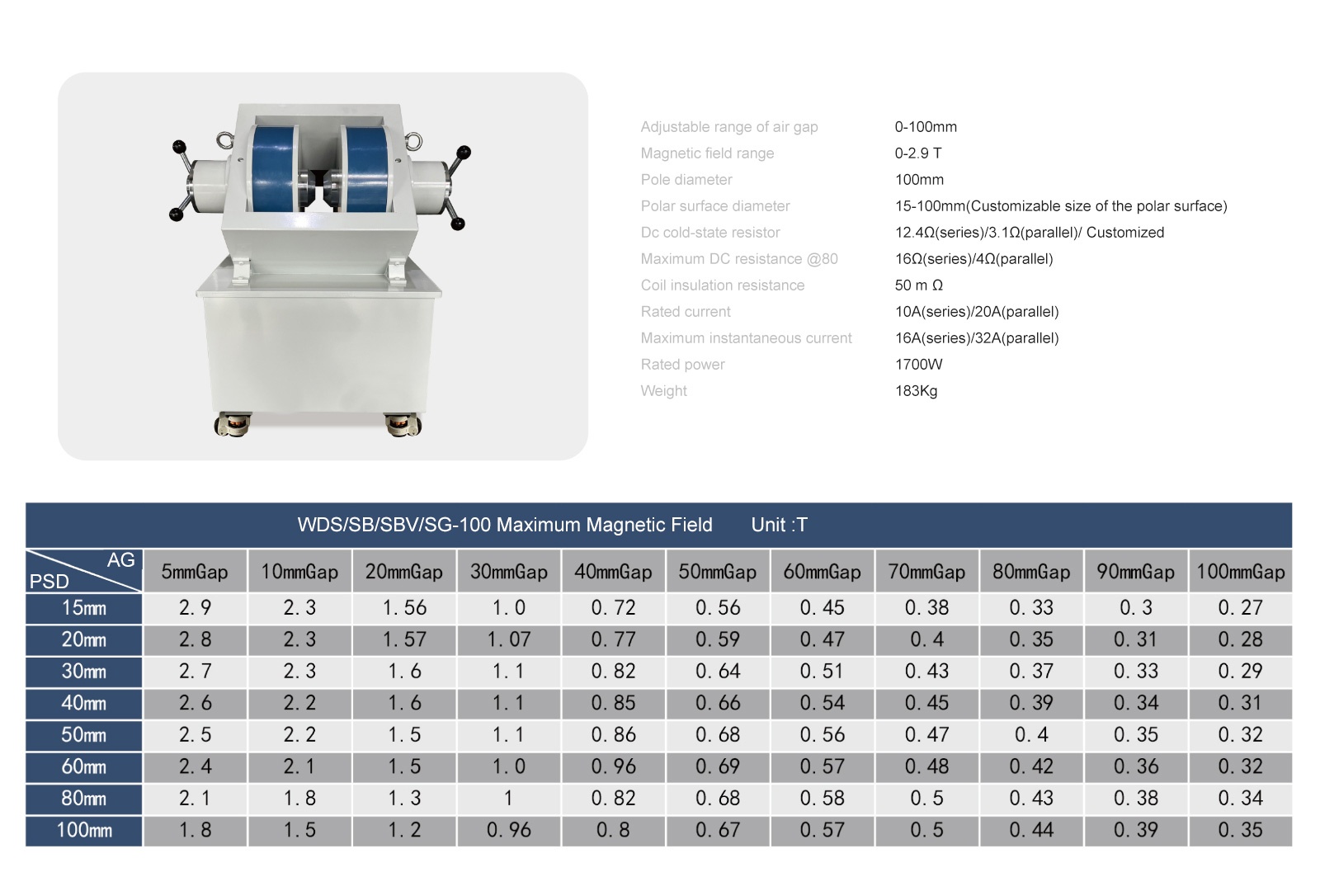

SB Series Electromagnet

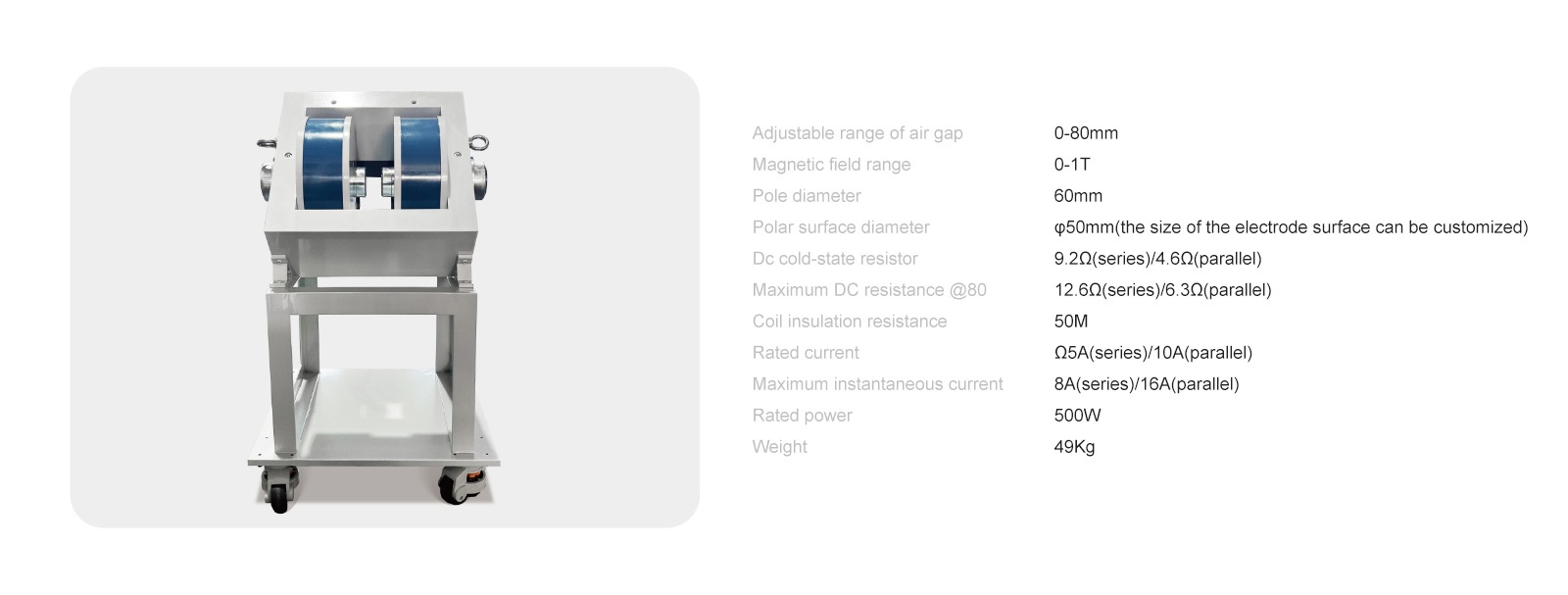

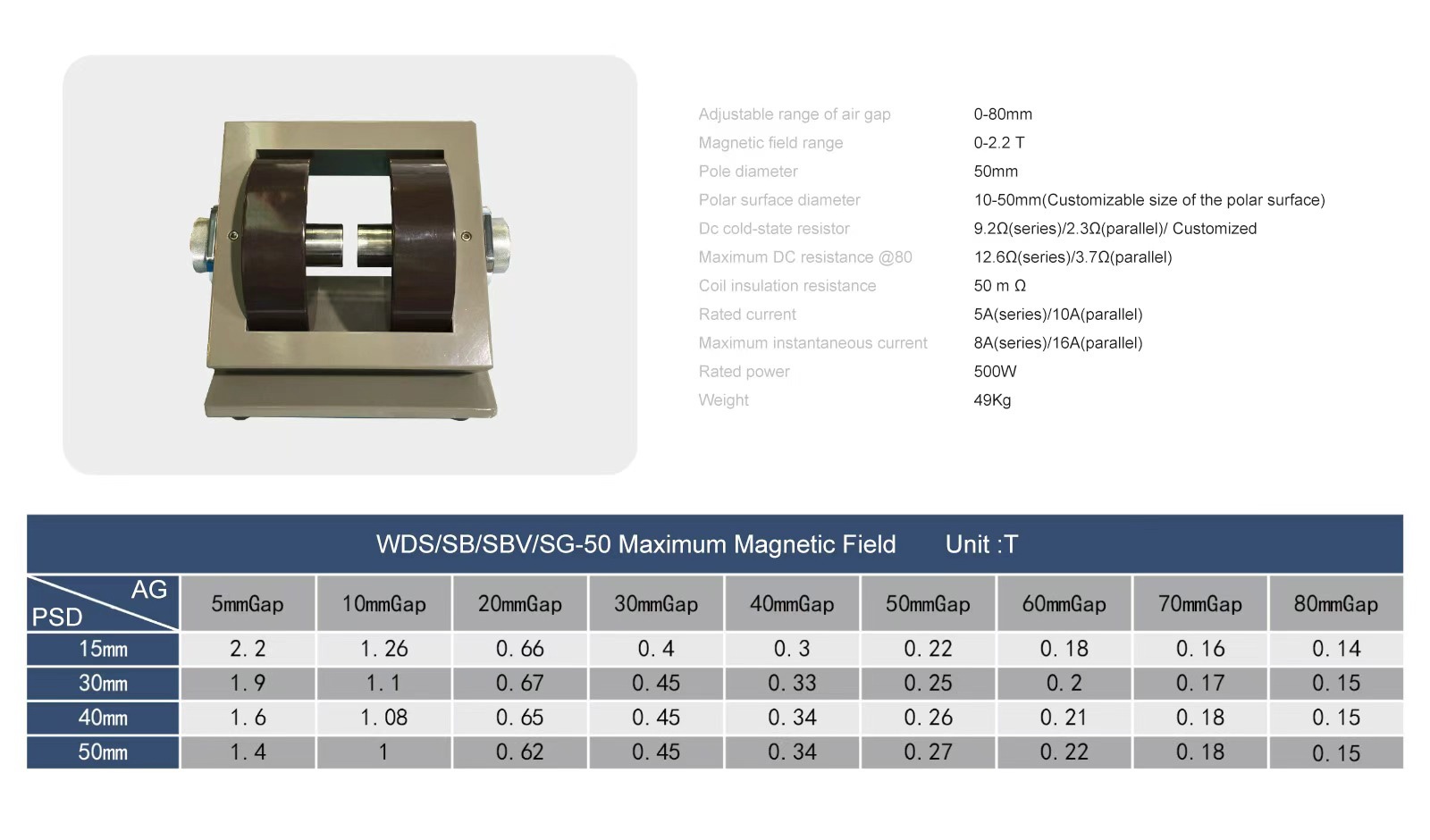

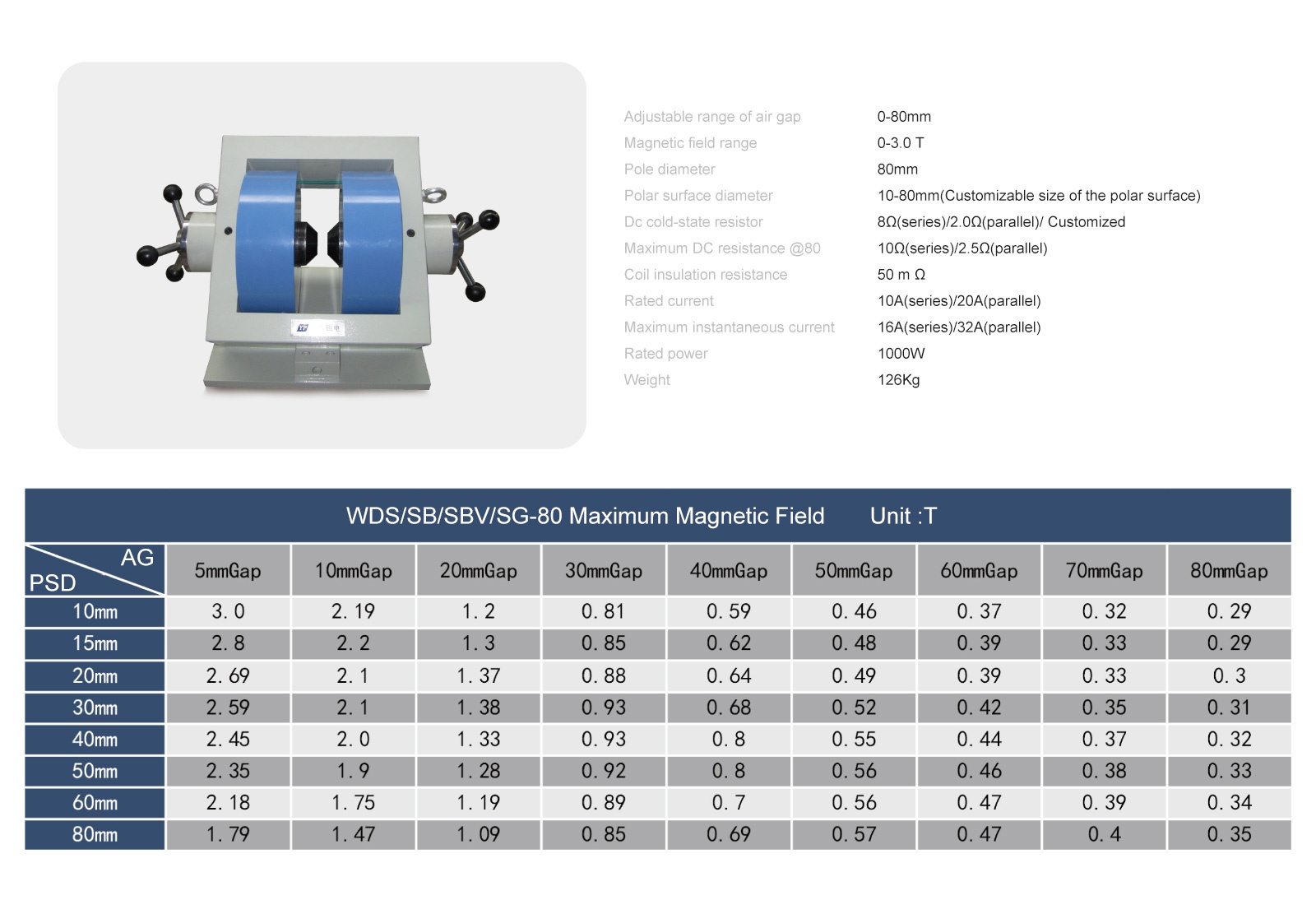

The SB electromagnet is a double-yoke(H-Frame) , variable air gap magnetic field generation equipment with each pole being adjustable. From the excitation of the excitating power source, the field vector forms a closed loop, and a high uniform magnetic field can be generated between two poles, and the field direction is along the axial direction of pole caps. All SB electromagnets are equipped with a pair of standard replaceable pole caps made of purity iron, which can be replaced to suit to individual experiment requirements. The pure-iron structure is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time.
