Choose The One That Suits Your Needs DC Excitation Power Supply
-

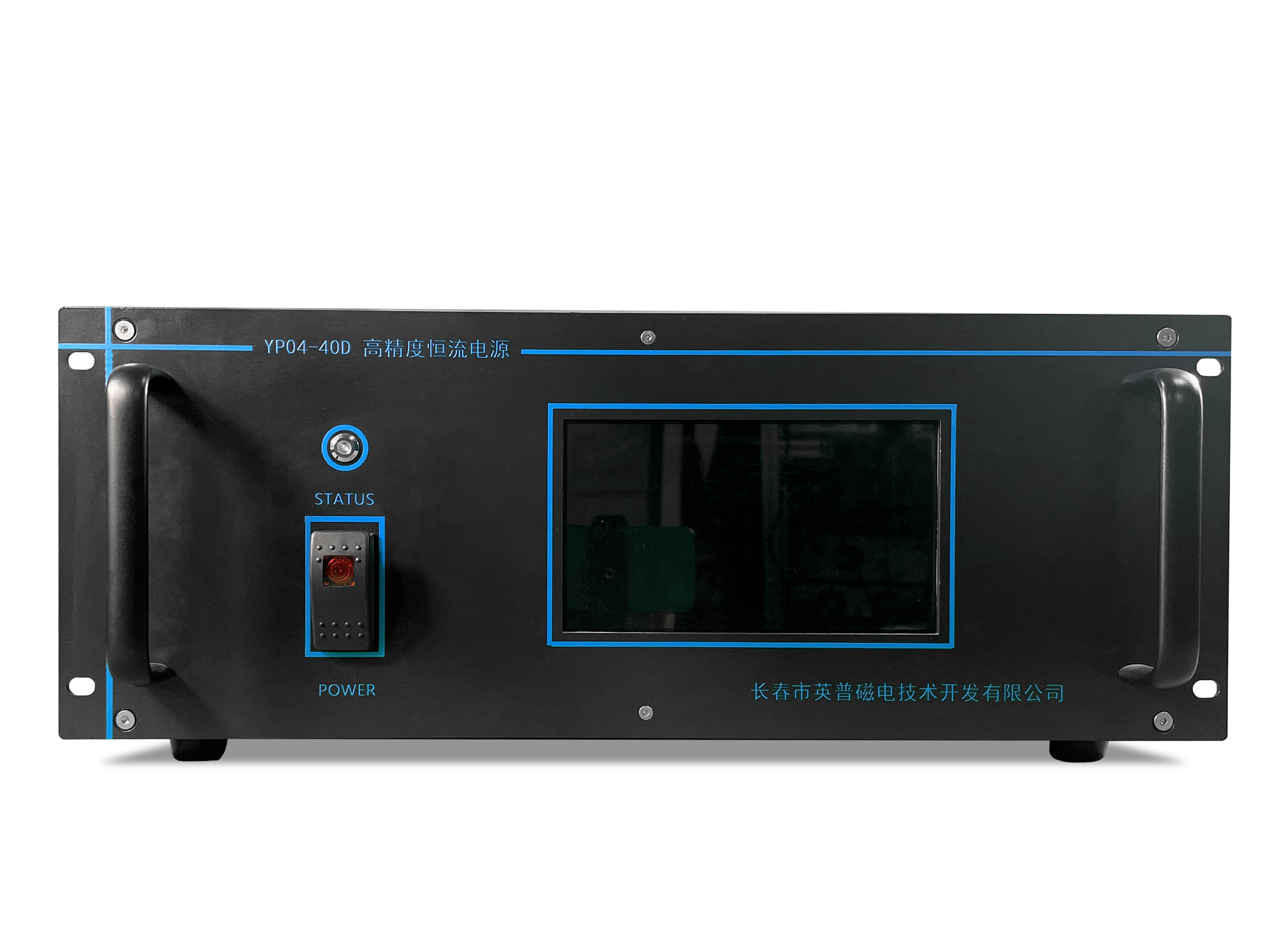

Learn MoreYP Series DC Power Supply
Product Descriptions
The DC power supply is a bipolar constant current power supply with high stability, high accuracy, high linearity and low ripple noise;
Relay-reversal direction controlled by the microprocessor with 5 options to delay time;
Reversal current surge: Less than 1 mA;
Three linear sweep modes including I, I-III, I-III-I quadrants;
Provided with built-in RS-232 or USB port and the relative conversion port;
A set of computer interface command (for RS-232 or USB port);
Timing continuous trigger output during sweeping. -
Learn MoreYPD Series DC Power Supply
Product Descriptions
This power supply is a high stability bipolar constant current power supply (smooth zero crossing commutation without delay). The power supply adopts a linear power supply structure, with high output current stability, low ripple and noise. The output current of the power supply can be continuously changed between positive and negative rated maximum current, and the current is smooth and continuous zero, which can generate a smooth and stable magnetic field in the electromagnet or coil. With our high precision Gauss meter and probe (optional), the power supply can operate in magnetic field mode. The magnetic field value can be directly set in magnetic field mode,The power supply will adjust the output current to make the electromagnet quickly reach the set magnetic field, convenient and fast, and the magnetic field is stable.It can control the field independently or scan the magnetic field continuously. The current mode and magnetic field mode can be switched at any time according to the need, and the operation is flexible. -

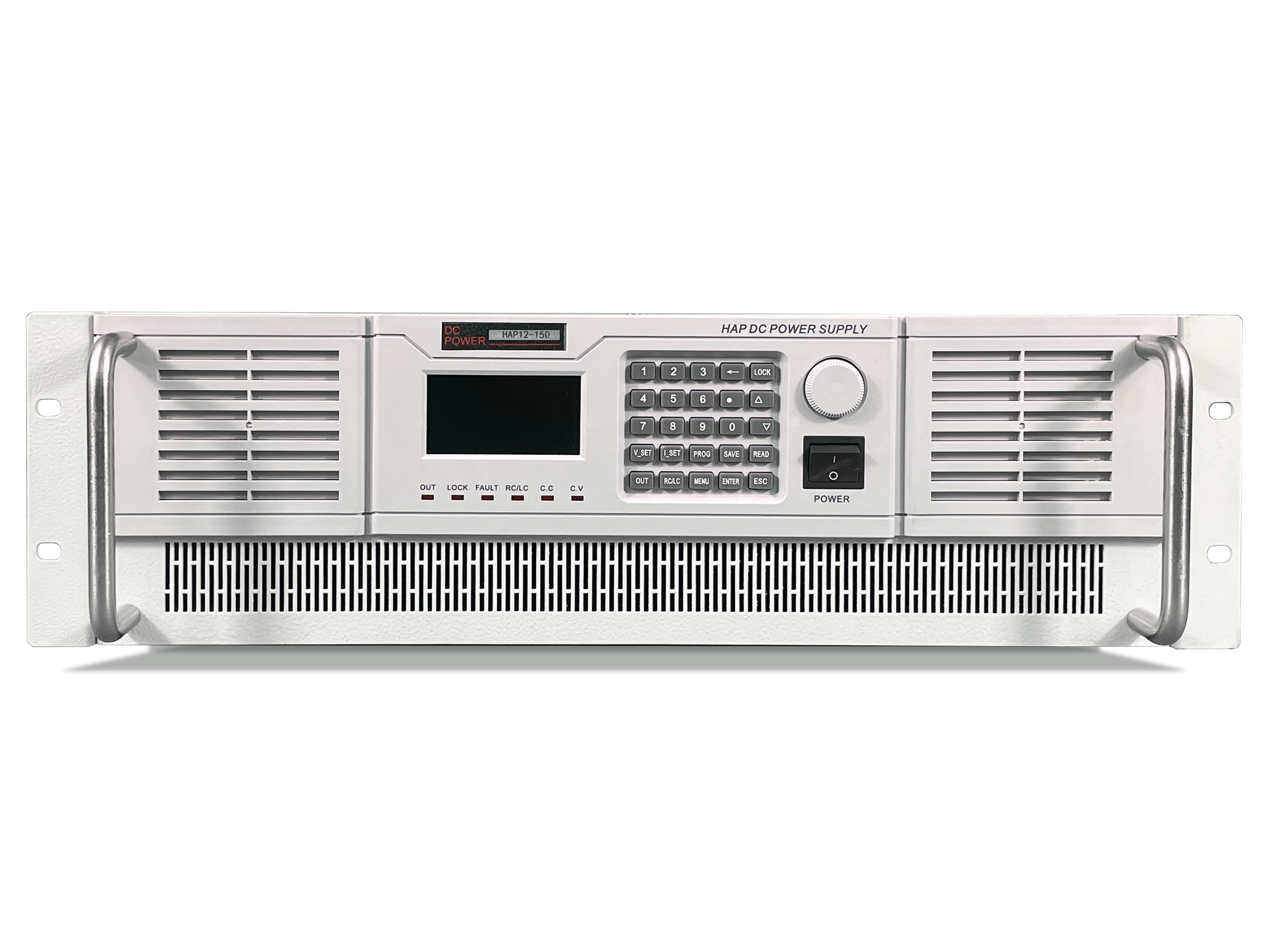

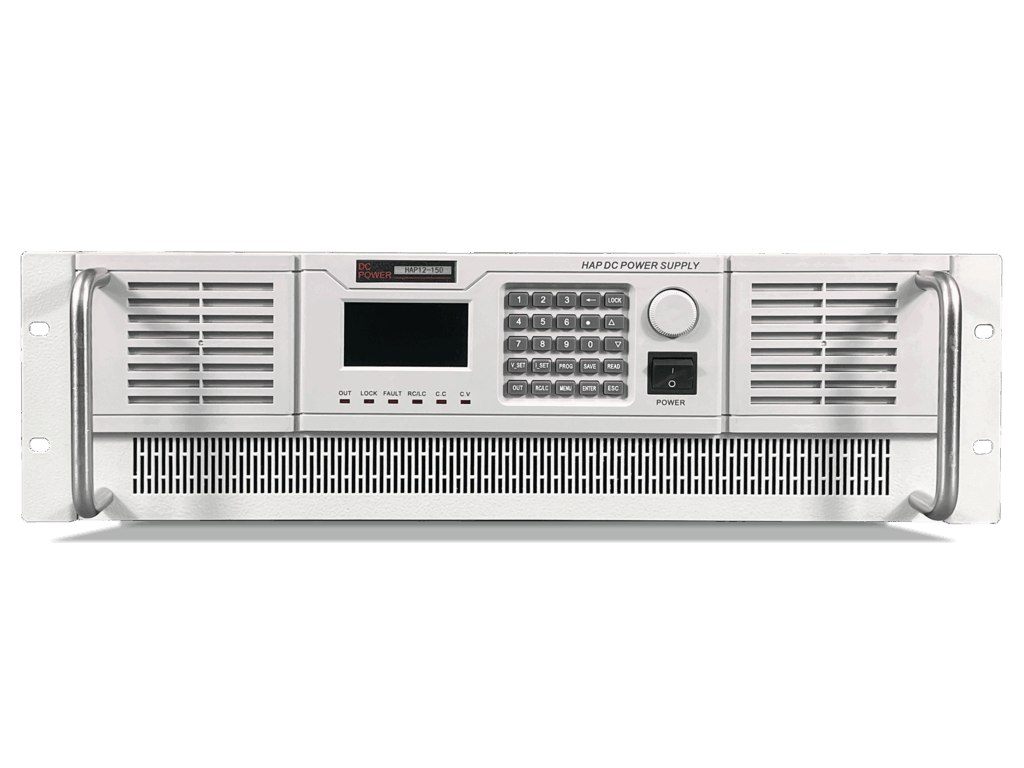

Learn MoreHAP Series DC Power Supply
Product Description
Programmable DC power supply is a high-performance DC power supply specially developed for scientific research and industrial applications in power automation control.
This series power supply has excellent electronic characteristics such as high accuracy, precision, and stability, designed with comprehensive over-voltage and over-temperature protection circuits, resulting in higher reliability of the products, and can be used to edit voltage, current and time parameters by the host computer through the panel keyboard or through the communication interface to achieve programmable automatic testing. It is widely used in excitation of inductive loads such as electromagnets and Helmholtz coils. -

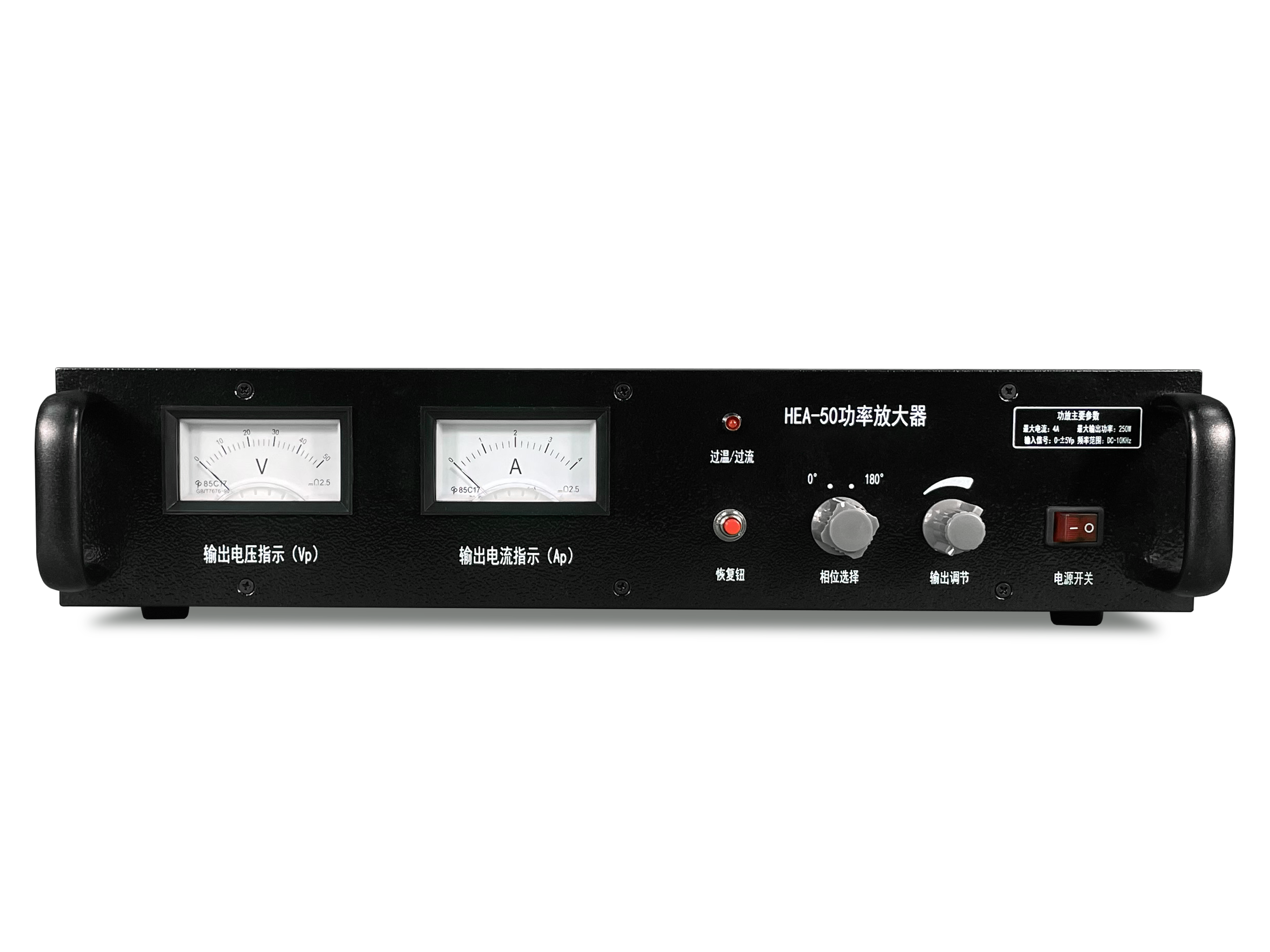

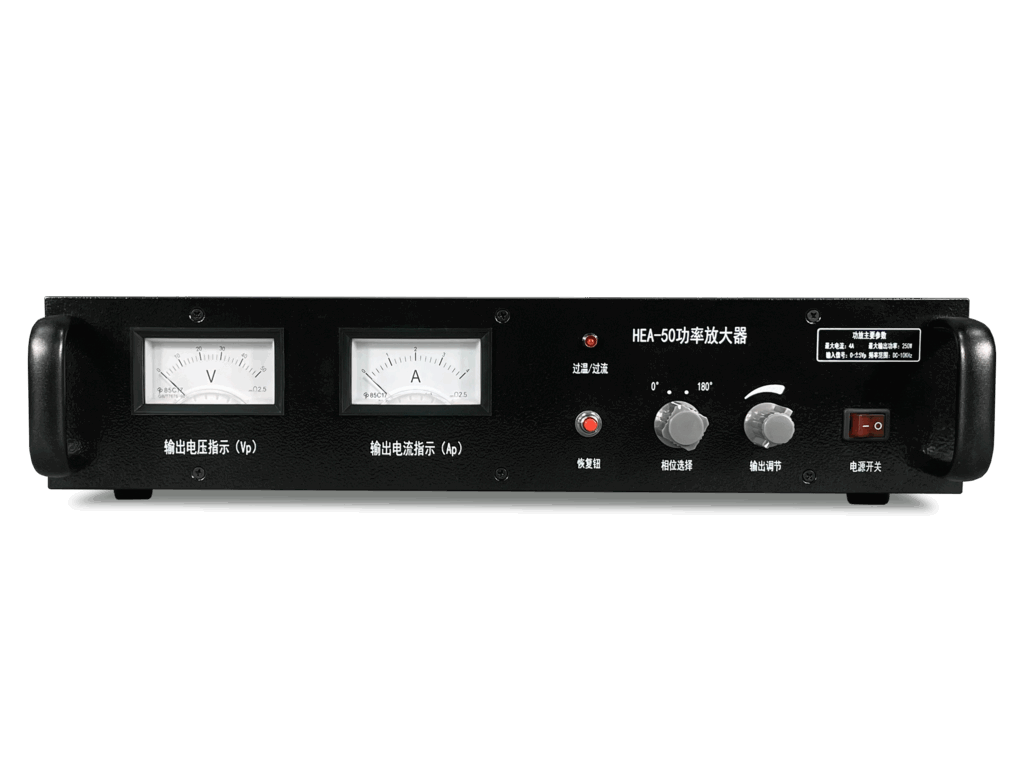

Learn MoreHEA Series Power Amplifiers
Product Descriptions
HEA series power amplifiers are specially designed for the use of exciter, which can provide a stable and adjustable excitation current for the exciter.Under the action of the excitation current, the exciter generates an excitation force on the tested component that corresponds to the excitation current, and the magnitude and phase of this force are only related to the excitation current and the characteristics of the exciter itself, but which is independent of the tested component.
HEA series linear power amplifiers has below advantages: stable performance, strong protection function, easy to operation, no impulse during startup, no pollution to the environment, safe and reliable use. In addition, HEA series linear power amplifiers have good adaptability, which is suitable for the impedance of its basic matching load. It is widely used in excitation of inductive loads such as electromagnets and Helmholtz coils.
Learn More About Our Products
-
VSM
A vibrating sample magnetometer(VSM) is an instrument that is used to measure magnetic properties. It is also called a Foner magnetometer or M-H Curve Hysteresis Graph Test System. <br/> VSM is composed of a master device, an electromagnet, a vibrator, a computer. The electromagnet source, the vibrator source, the magnetic moment measuring unit and the magnetic field measuring unit which all controlled by MPU (AT89C52) constitute the instrument. The instrument communicates to the computer with the standard RS-232-C serial interface, then enhanced systematicness of the instrument and operability of the hardware. Operating functions of the special complement software is powerful and software is used conveniently.
-

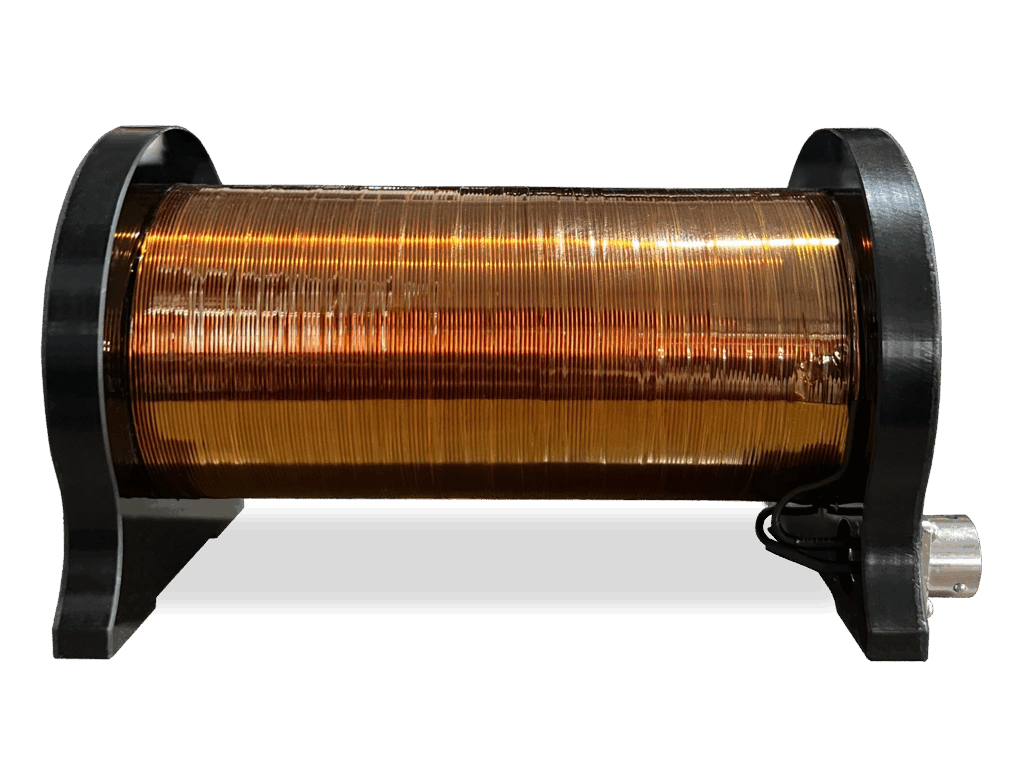

Solenoid Coils
A solenoid coil is an efficient electromagnetic device, consisting of conductor wires made of highly conductive materials winding in a tight spiral shape, capable of generating a uniform and strong magnetic field. Our solenoid has the characteristics of good uniformity, small size and high magnetic field.<br/> The solenoid is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time. and can be designed and produced according to user's application conditions、coil size、structural and magnetic field requirements.
-
HEA Series Power Amplifiers
HEA series power amplifiers are specially designed for the use of exciter, which can provide a stable and adjustable excitation current for the exciter.Under the action of the excitation current, the exciter generates an excitation force on the tested component that corresponds to the excitation current, and the magnitude and phase of this force are only related to the excitation current and the characteristics of the exciter itself, but which is independent of the tested component.<br/> HEA series linear power amplifiers has below advantages: stable performance, strong protection function, easy to operation, no impulse during startup, no pollution to the environment, safe and reliable use. In addition, HEA series linear power amplifiers have good adaptability, which is suitable for the impedance of its basic matching load. It is widely used in excitation of inductive loads such as electromagnets and Helmholtz coils.
-

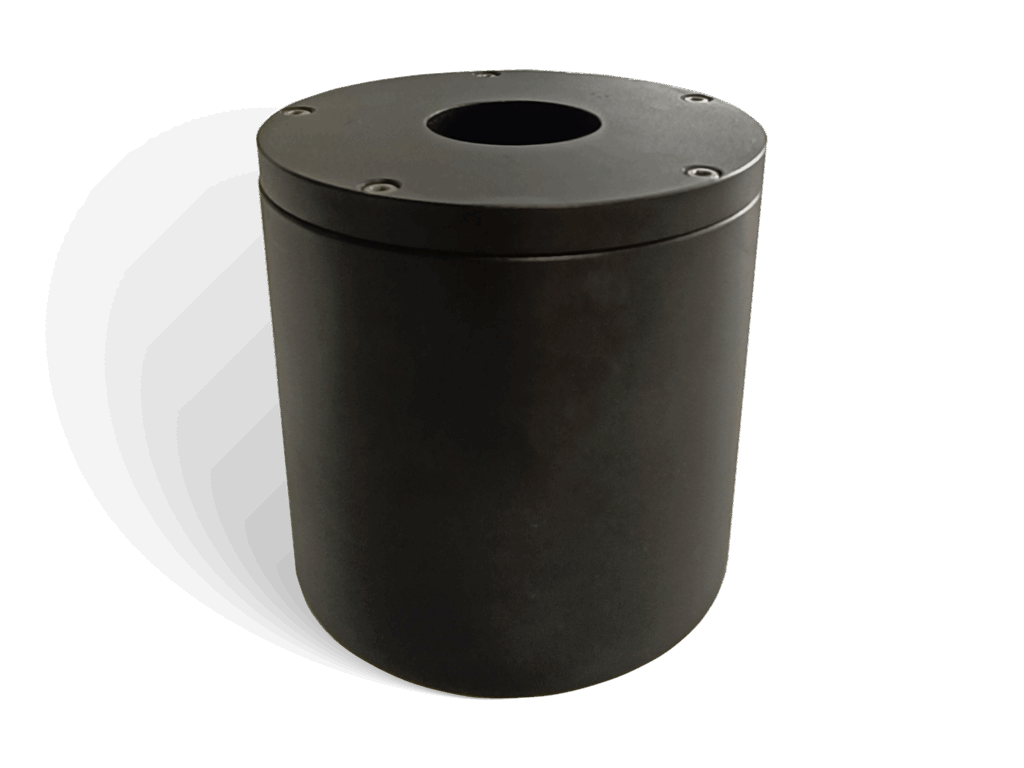

Halbach permanent magnet
Halbach permanent magnet is a magnetic ring made from a specially arranged array of permanent magnets, capable of generating a strong one-sided magnetic field inside or outside of the ring, while there's almost no magnetic field on the other side. This design significantly improves magnetic field utilization efficiency and is widely used in high-performance magnetic devices such as particle accelerators, magnetic resonance imaging (MRI), and high-precision magnetic measurement equipment.
-
Magnetic-Moment-Free Coil
The Magnetic-Moment-Free Coil is composed of several pairs of coils, which are installed in a certain geometric structure, and of which the certain number of coil’s turns and a certain current direction make the magnetic field outside the Magnetic-Moment-Free Coil attenuate rapidly and make the magnetic moment of the Magnetic-Moment-Free Coil be zero. One of outstanding advantages of the moment-free coil is that it does not produce magnetic interference to the environment outside a certain distance from the Magnetic-Moment-Free coil during operation, which means that it is very significant for the simultaneous operation of multiple systems; In addition, the moment-free coil does not magnetize the adjacent magnetic substance, therefore, it does not bring extra errors to the moment-free coil in this respect.
-

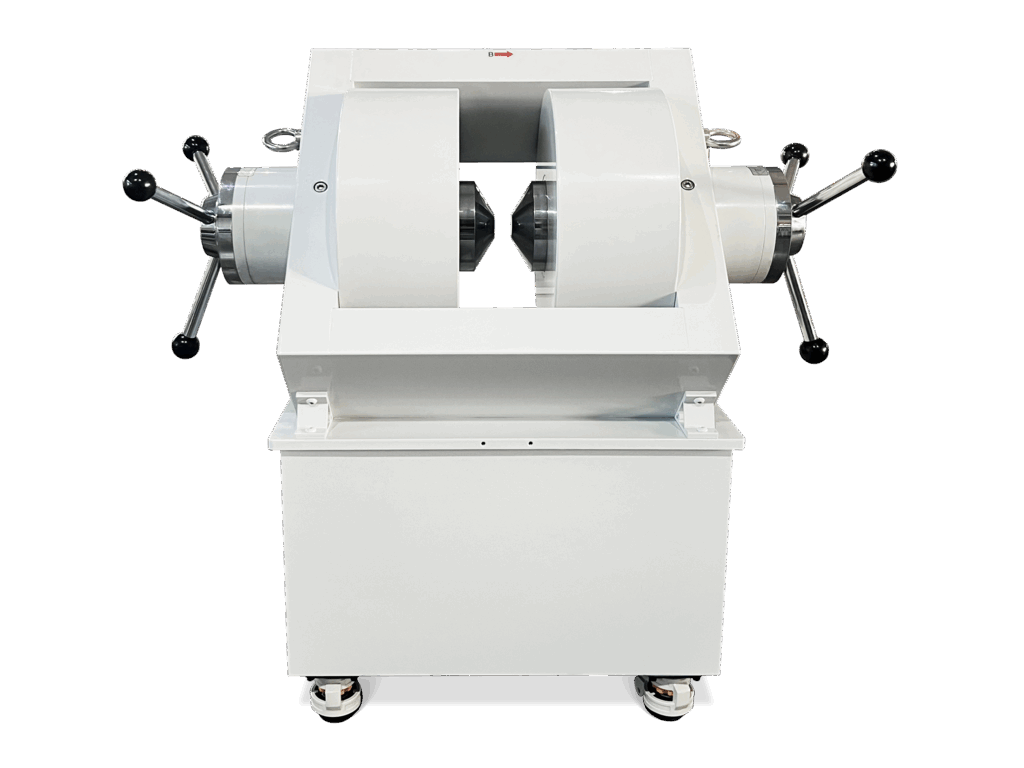

SB Series Electromagnet
The SB electromagnet is a double-yoke(H-Frame) , variable air gap magnetic field generation equipment with each pole being adjustable. From the excitation of the excitating power source, the field vector forms a closed loop, and a high uniform magnetic field can be generated between two poles, and the field direction is along the axial direction of pole caps. All SB electromagnets are equipped with a pair of standard replaceable pole caps made of purity iron, which can be replaced to suit to individual experiment requirements. The pure-iron structure is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time.
-
High Homogeneity coil
High Homogeneity coil, which is composed of multi-ring coils arranged along the axial direction, includes the common coils such as Barker Coil, Braunbek Coil, Maxwell Coil, Rubens Coil, and Magnetic-Moment-Free coil. Compared with the Helmholtz coil, the combined coil features the better magnetic field homogeneity under the same diameter, the higher homogeneity and larger homogeneity volume in the effective space, and is suitable for the high-precision and large-range magnetic field needs. This design can meet any parameter customization requirements.
-
Flux meter
The third-generation smart high precision flux meter is controlled by a microprocessor. It uses electronic integral principle, automatic digital suppression adjustment drift system. Display the measured magnetic flux and magnetic field intensity with a color display.It can measure the total magnetic flux and get the values of magnetic flux density and magnetic field strength. The flux meter is a valuable component in magnetizing machines, manual and automatic magnet detection and classification, and hysteresis loop measurement systems.
-
Multi-Pole Electromagnet
Multi-Pole Electromagnet is a kind of closed loop electromagnet composed of multiple caps, which is basically the Four-Pole Electromagnet, and also has the other multi-pole applications such as Five-Pole, Six-Pole, and Eight-Pole. They are mainly applied for Multi-Pole Magnetic Ring Magnetization, Radial-Direction Gradient Magnetic Field, and Rotating Magnetic Field Magnetic Guidance and etc. and they can be designed and produced according to user's individual requirements.
DC Excitation Power Supply Product Accessories
-
Closed Loop Control System
WD type closed-loop control system
-
Power Line
WD type electromagnetic power cord
-
Probe Holder
WD type electromagnetic probe holder
-
Pure Iron Tip
WD type electromagnet pure iron pole head
-
High precision electric control turntable
WD type high-precision electromagnetic control turntable
-
Manual Turntable
WD type manual turntable
