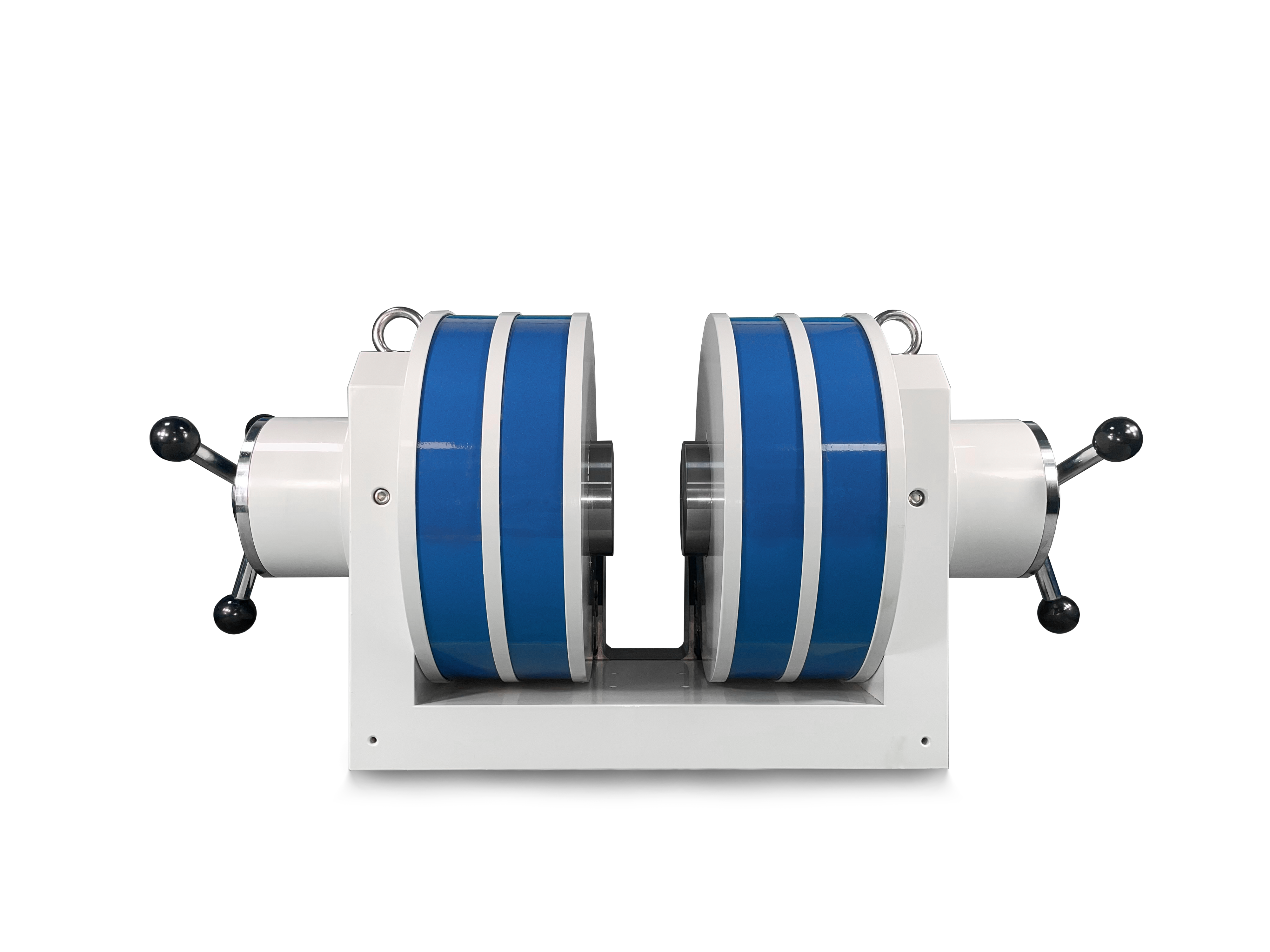

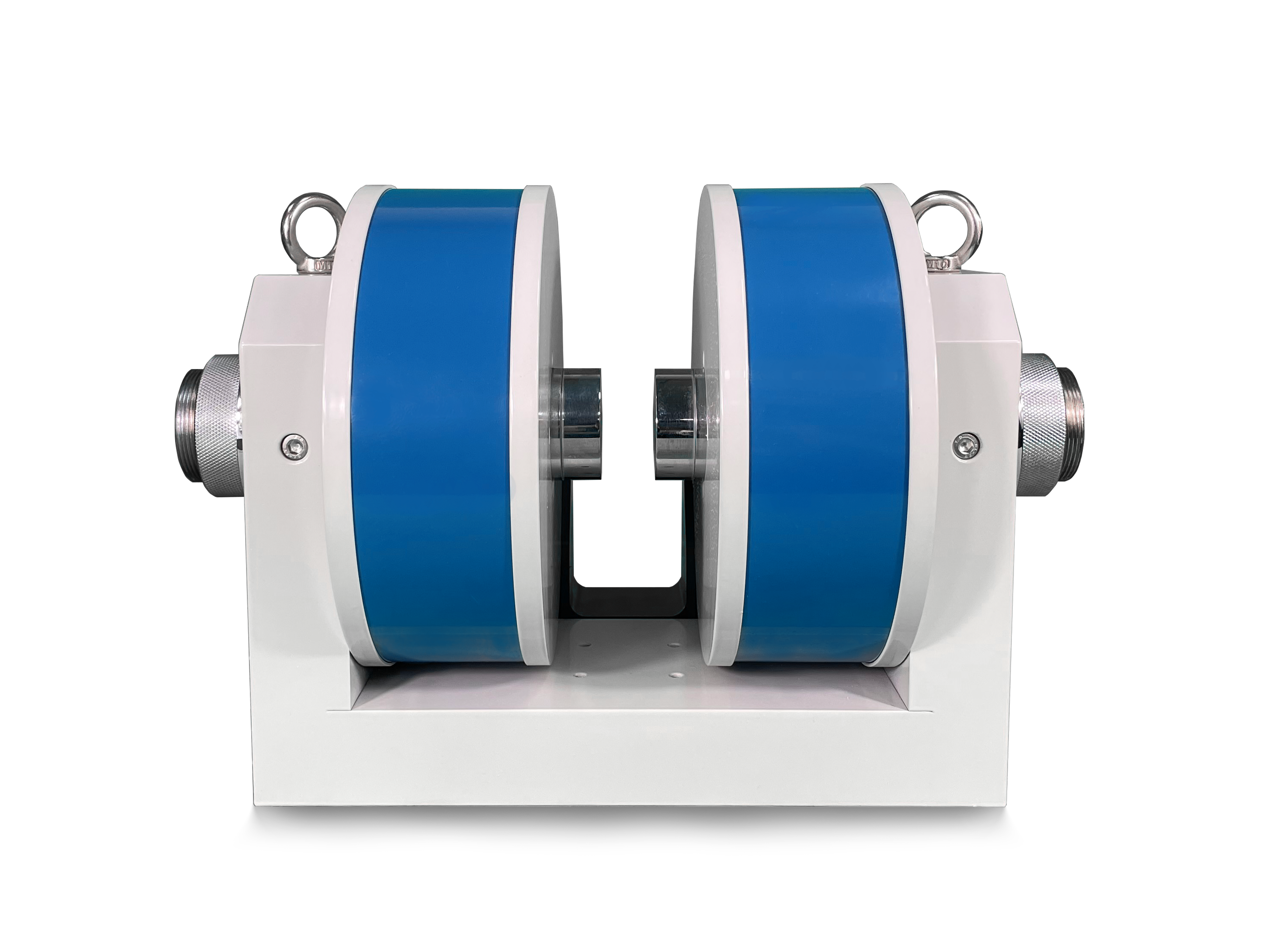

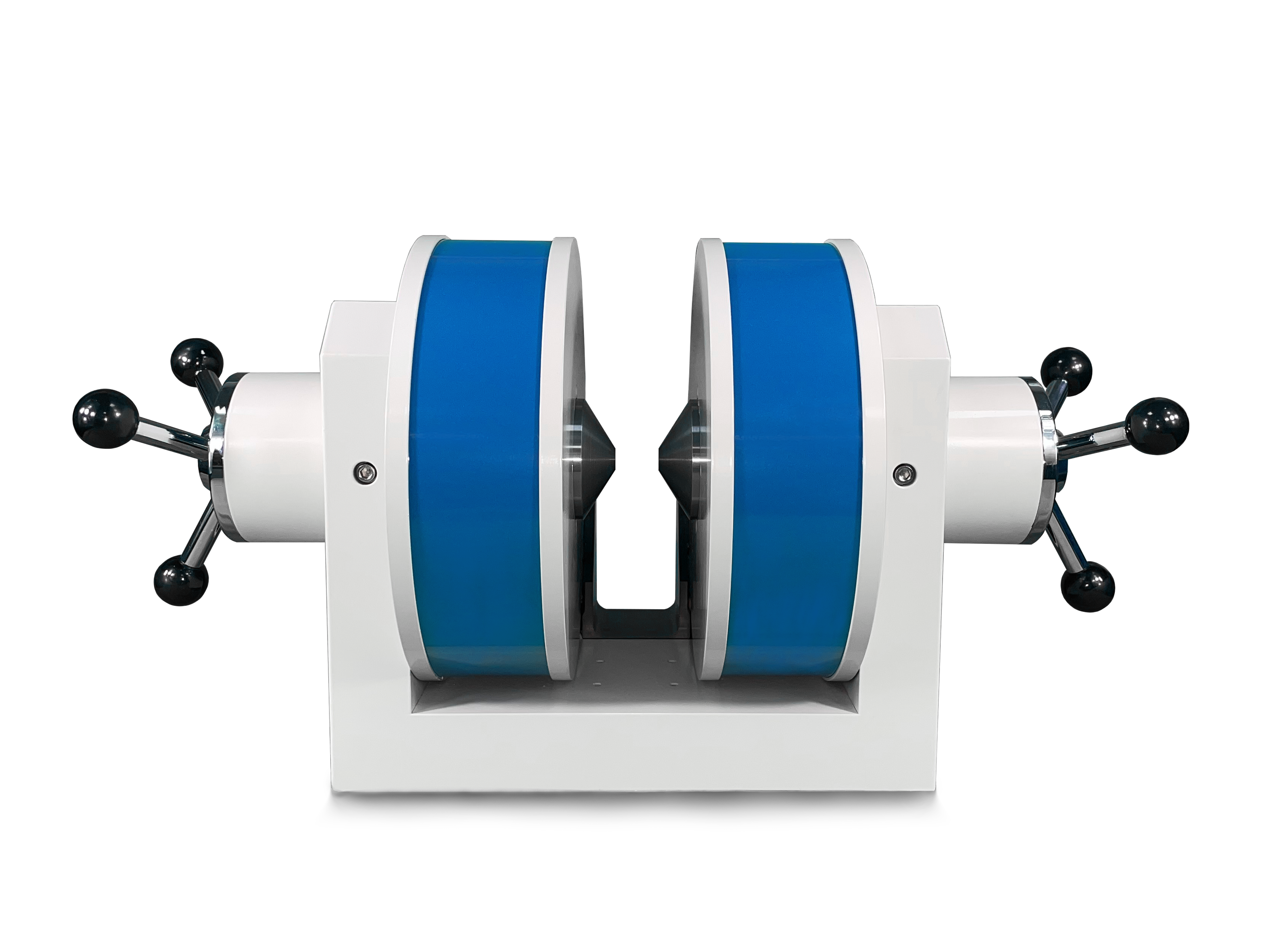

WDS Series Electromagnet
The WDS electromagnet is a C-Frame, variable air gap magnetic field generation equipment with each pole being adjustable. From the excitation of the excitating power source, the field vector forms a closed loop, and a high uniform magnetic field can be generated between two poles, and the field direction is along the axial direction of pole caps. All WD electromagnets are equipped with a pair of standard replaceable pole caps made of purity iron, which can be replaced to suit to individual experiment requirements. The pure-iron structure is suitable for coils heat dissipation, and the option of cooling water system is also available for extend the operating time.
Product Features
Higher Magnetic-Field Generation
Adjustable Magnetic-Field Strength and Magnetic-Field Spacing
Excellent Magnetic-Field Uniformity
Greater Accessibility to the Working Gap
Highly Customer-Designed Electromagnet to Meet Customer’s Individual Requirements
Names of Accessories For Each Part

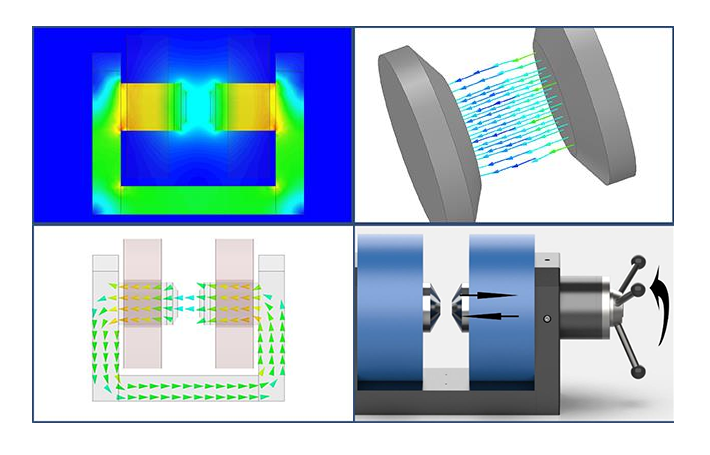

Operating Principles
Electromagnets are magnetic field generating devices composed of coils and iron cores. Magnetic flux conducts through the yoke, pole core, pole cap, and air gap, forming a closed loop. The magnetic field strength can be adjusted by adjusting the input current of the electromagnetic coil, and the relationship between current and magnetic field strength is nonlinear. A high uniform magnetic field can be generated between two pole cores, and the magnetic field space depends on the air gap and pole cap diameter (the air gap can be adjusted by rotating the adjusting nuts on both sides of the electromagnet), and the field direction is along the axial direction of pole caps.
Inquiry

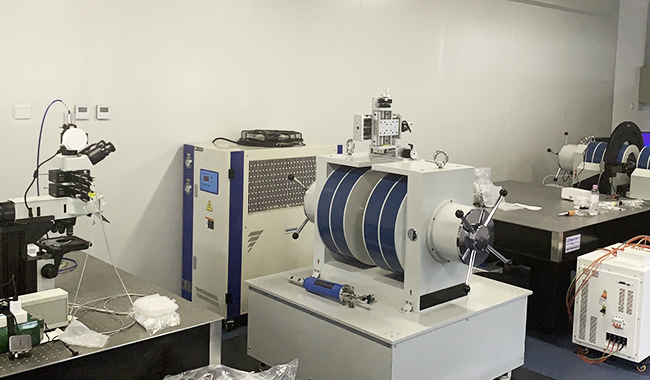

Application (Typical)
Physics Experiment
Biomedical Applications
Magnetic Material Measurement
Materials Science
Creation of Standard Magnetic Field
Industrial Production
Active Shield and Earth Magnetic Environment Simulation
Magnetic-Field-Related Scientific Experiments
